HIPTZ-2 EO/IR Dual-Spectrum PTZ camera

We focus on the innovation and research and development of small and compact infrared thermal imaging cores and have the industrial mass production technology, domestic hardware & software technical engineers who are proficient in optical design, image algorithm, information processing, precision machinery and thermal imaging core technology.

Product Introduction This EO/IR Dual-Spectrum PTZ camera is composed of infrared thermal imaging camera, full HD color B&W dual-mode low-illumination visible light camera, 360° omni-directional high-precision PTZ and fully sealed anti-corrosion shield, laser lighting or laser ranging, Beidou/GPS and electronic multi-disk module can be selected as required; It is a camera specially designed and developed for the field of remote day and night monitoring. It can detect and alarm fire sources within 5KM to ensure the safety of life and property. It is suitable for remote monitoring in scenes such as border and coastal defense bases. Product Features > Thermal camera & high-definition visible camera > All-metal structure > IP66 protection level > Worm gear and worm drive, power-off and self-locking function > Support network HD transmission

Classification:

Finished thermal imagers

Key words:

HIPTZ-2 EO/IR Dual-Spectrum PTZ camera

Message Return

Product Details

Thermal Camera	Detector type	Uncooled FPA
	Detector resolution	384×288 17um / 640×480 17um / 640x512 12um
	Spectral range	8～14um
	NETD	＜30/40mk @300k F1.0
	Focus mode	manual/auto
	Lens	75mm (optional)
	Pallette	White hot、black hot、color
CCD camera	Sensor	1/2.8" 2M Progressive Scan CMOS
	Effective pixels	1920×1080,2M pixels
	Min. Illumination	0Lux
	Automatic control	Automatic white balance, automatic gain, automatic exposure
	Signal-to-noise ratio	≥50dB
	Backlight compensation	On/off
	Shutter	1/25～1/10,000s
	Day / night mode	Filter switching
	Digital zoom	12x
	Focus mode	Auto /manual
	Lens	8.1mm～310mm, 38x
	F	F1.8/F6.1
	Zoom speed	5.8Sec
	Minimum working distance	100mm(Wide angle),1500mm(Telephoto)
Functions	Horizontal range	360° continuous rotation
	Horizontal speed	0.5°～80°/s, multiple manual control levels can be set
	Vertical range	-90°～+50°
	Vertical speed	Synchronous belt drive:0.5°～20°/s, Worm gear drive:0.5°～9°/s
	Proportional zoom	support
	Number of presets	255
	Cruise scan	6 pcs, each can add 18 preset points, and the residence time can be set
	Power off and self-locking	support
	Network interface	RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
Network	Maxim image size	2592×1944 / 1920×1080
	Frame rate	25/30 fps
	Video compression	H.264
	ONVIF	Compatible
	Network protocols	IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP
	Simultaneous access	Maxim 6
	Dual stream	support
	Local storage	SD/SDHC Memory card slot (without SD card)
	Safty	Password protection, multi-user access control
General parameters	Power supply	AC24V，50Hz

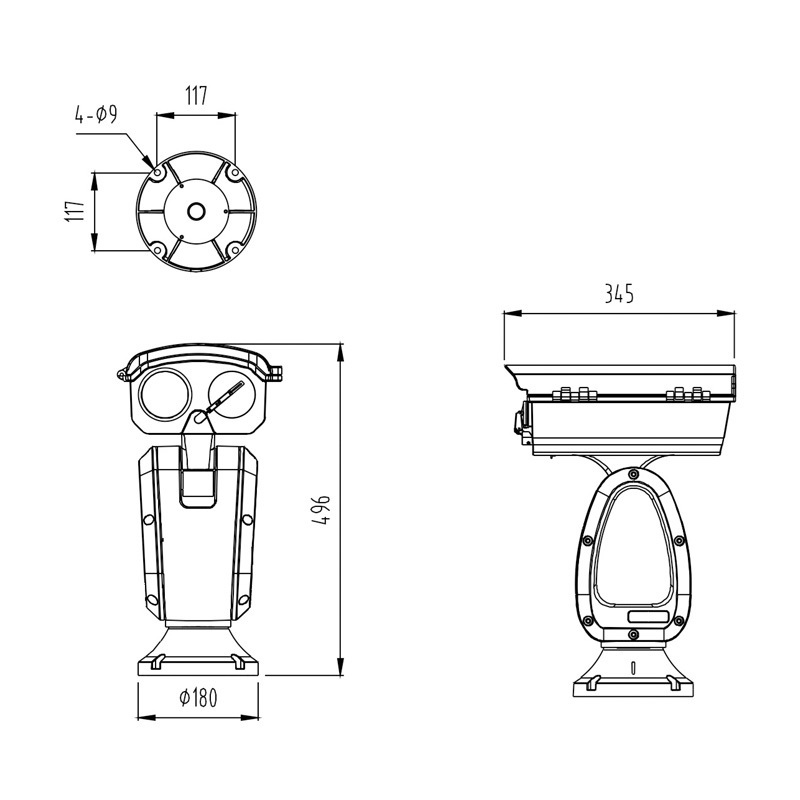

	Size	180mmx345mmx496mm
	Power consumption	80W
	Protection level	IP66,TVS 3000V Lightning protection, surge protection, surge protection
	Operating temperature	-40℃～65 ℃
	Operating humidity	＜90%
