HI36V Dual-Light Fusion Vehicle Night Vision thermal imaging System

We focus on the innovation and research and development of small and compact infrared thermal imaging cores and have the industrial mass production technology, domestic hardware & software technical engineers who are proficient in optical design, image algorithm, information processing, precision machinery and thermal imaging core technology.

Product Introduction This dual-light vehicle night vision thermal imaging system HI36V is equipped with a starlight day & night camera and an infrared thermal imaging camera, which can clearly image during darkness, sand, dust, fog, haze and other bad weather conditions, and ensure the safety of vehicles in day and night. It is suitable for ambulance, fire truck, police patrol vehicle, heavy engineering vehicle, etc Product Features > Starlight day & night 1080P camera > Uncooled infrared thermal imaging camera > IP67

Classification:

Finished thermal imagers

Key words:

HI36V Dual-Light Fusion Vehicle Night Vision thermal imaging System

Message Return

Product Details

HI36V Dual-Light Fusion Vehicle Night Vision thermal imaging System
starlight camera	Processor type	SSC3 35
	Image sensor	3M Pixels , 1/2.8'' CMOS SC33 36
	Video process	H.265/H264, supports 0.1m-6Mbps and 1-25fps/s
	Video output	Main stream: 25fps@20fps (2304X1296, 1920X1080, 1280X720); Sub-stream: 720x480, d1, vga, 640x360)
	Audio standard	G.711
	HFOV	70-90°
	Video output	network coding, RJ45 10/100M adaptive Ethernet interface
	Communication port	RS232 interface
	Internet protocol	RTSP/DHCP/NTP/ONVIF
	function	support OSD/Real-time audio and video transmission/Humanoid detection/sound alarm/ dual light source alarm
	Power supply	DC24V±10%
	Power consumption	110mA
	Working temperature	Temperature: -40℃～+65℃
	Size	38×38mm,tolerance±0.5mm
	Shock	Vibration:GJB 150-16 2.3.1
Thermal imaging camera	detector	Uncooled amorphous silicon FPA(non-tec)
	FPA format/Pixel pitch	640x512 12um/640x480 17um
	Sensitivity	≤40mk at f/1.0 300K
	Frame rate of the detector	50Hz
	Spectral range	8~14um
	Start-up time	< 7s
	Image display resolution	768×576, 25Hz
	Lens(optional)	FOV: 90°*68°
	Polarity	black hot & white hot & color
	Digital zoom	NO ZOOM
	Brightness/Contrast	auto/manual
	Image reversal	horizontal/vertical
	Operation voltage range	DC: +5V~+36V
	Power consumpion	<2W
	Operation temperature range	commercial use:-20ºC~+60ºC(Option: -40ºC~+60ºC)
	Non-operating temperature range	-45ºC~+65ºC
	Humidity	5%~95% Non condensing
	Shock	Axial:GJB 150-18 Test7 100g/6ms	Vibration:GJB 150-16 2.3.1
	temperature shock	-5ºC/min(-40ºC~+60ºC)
	External power input	YES
	vdeo output	RJ-45
	communication	TTL

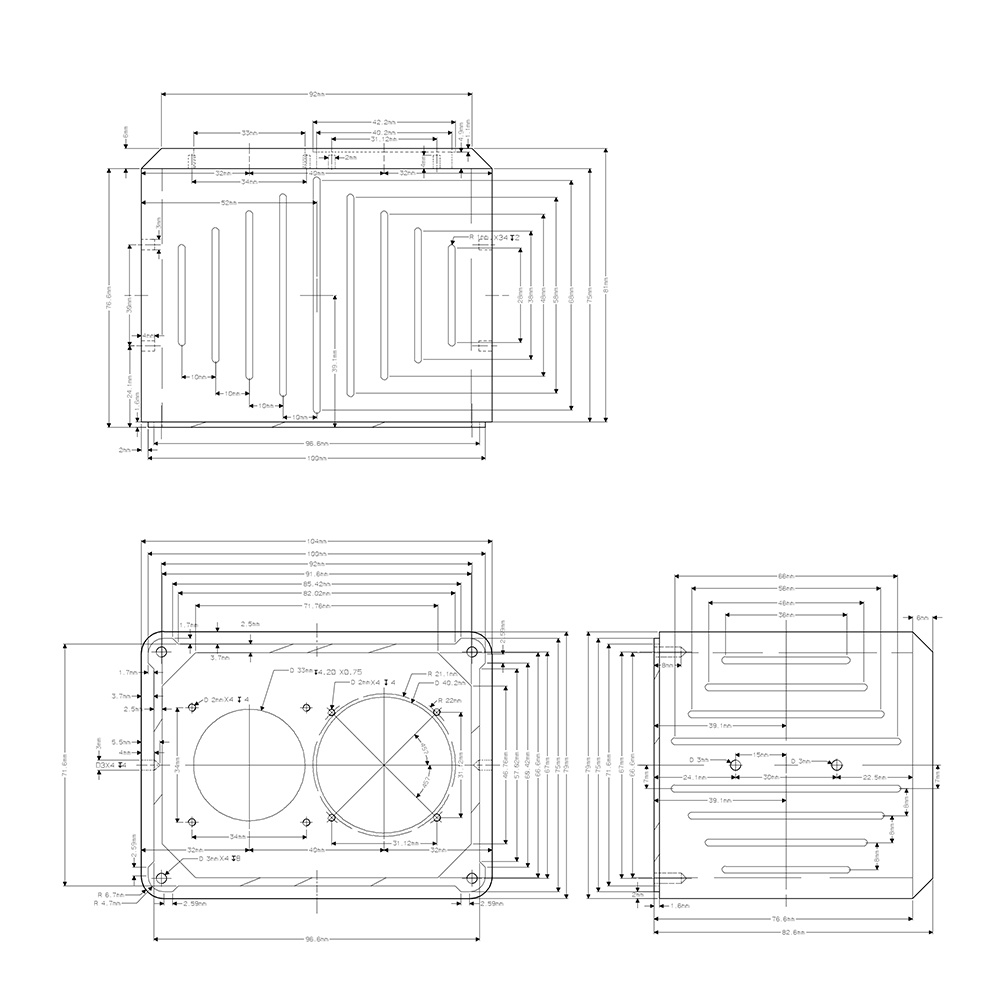

Size	104X79x82.6mm(with standard lens)
weight	700g(with standard lens)
connector	waterproof external power input & RJ-45
