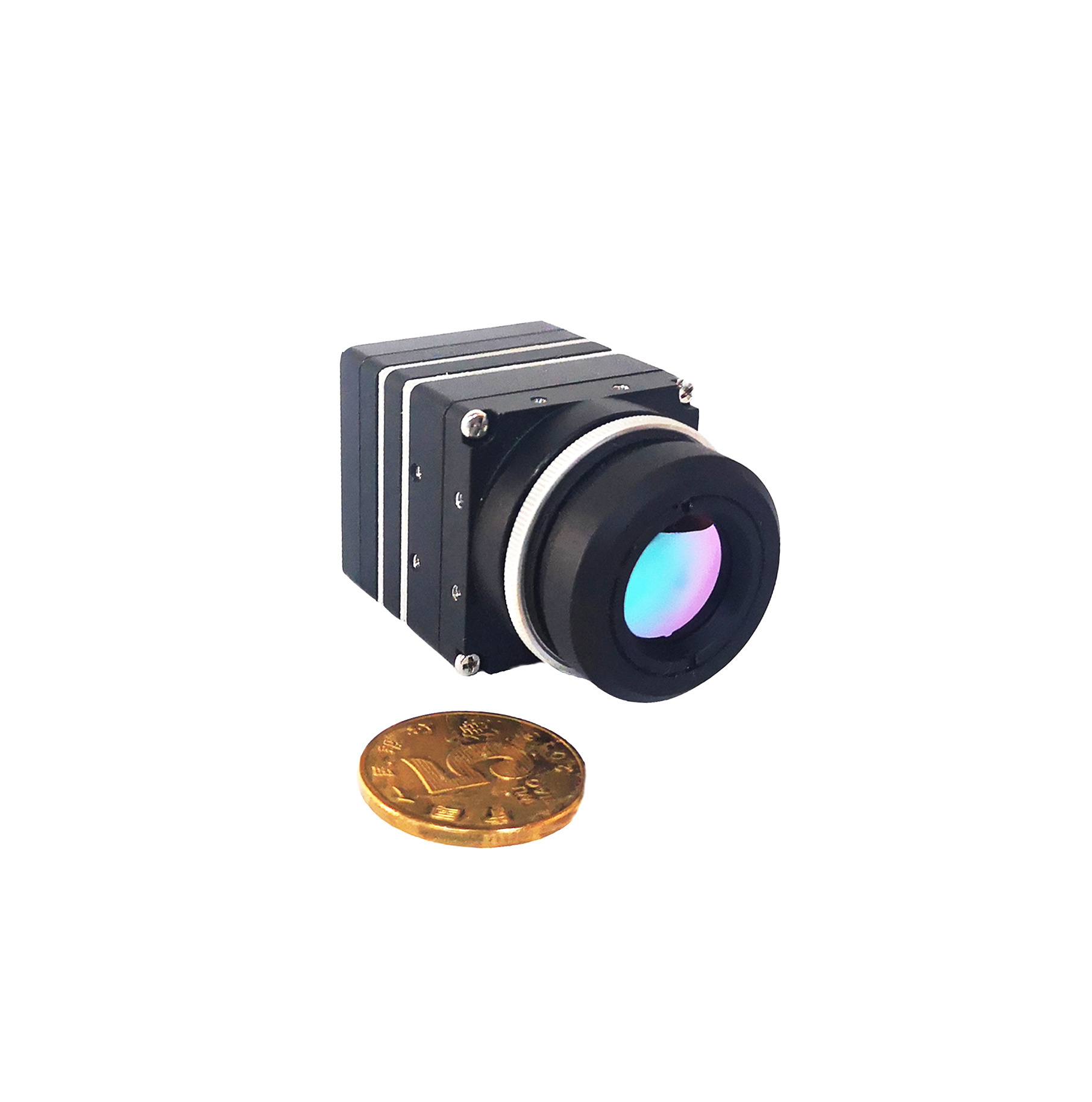

HI384G miniature infrared thermal imaging core

We focus on the innovation and research and development of small and compact infrared thermal imaging cores and have the industrial mass production technology, domestic hardware & software technical engineers who are proficient in optical design, image algorithm, information processing, precision machinery and thermal imaging core technology.

Product Introduction This is a super small & light (28 X28mm) , low power consumption uncooled infrared thermal imaging core. Lenses, video outputs and software functions can be customized. It is the best choice for OEM assembly and integration of lightweight, small, low-power, low-cost systems. Product Features > Super small size & super light weight > Lower power consumption > Shutterless technology > Optional & customized video outputs

Classification:

Uncooled thermal imaging cores

Key words:

HI384G miniature infrared thermal imaging core

Message Return

Product Details

Parameters		Function
Detector	Detector type	Uncooled FPA(non-tec)
	Resolution/pixel pitch	384x288 17um
	Sensitivity	≤40mk at f/1.0 300K
	Frame rate	50Hz
	Spectral range	8~14um
Image Processing	Self-adaption calibration	Shutterless technology
	Start-up time	＜7s
	Image enhancement	DDE
	Image display resolution	768×576
	Image frame rate	25Hz（PAL）
	Lens (optional)	12mm,19mm,25mm,35mm,50mm......
Image adjustment	Polarity	Black hot/white hot/color
	Zoom	1-4x(step：0.05x)
	contrast/brightness	Auto + manual
	Mirror	horizontal/vertical
	Cursor	Optional 1-8 cursors
Power	Operating voltage range	DC: +2.5V~+5.5V
	Power consumption	<0.7W
	Reverse connection protection	Yes
	Overvoltage protection	Yes
Environmental parameters	Operation temprature range	commercial use:-20ºC~+60ºC
	Operation temprature range	Special use:-40ºC~+60ºC
	Non-operating temprature range	-45ºC~+65ºC
	Humidity	5%~95% Non condensing
	Shock	Vibration:GJB 150-16 2.3.1
	Shock	GJB 150-18 Test7 100g/6ms
	temperature shock	-5ºC/min（-40ºC~+60ºC）
Physical parameters	Weight	33g (without lens)
Physical parameters	Size	28mm×28mm (without lens)
External interface	External power input	Yes
	Digital Video output	BT.656/16BIT/USB/Cameralink/RJ-45/HDMI/MIPI
	Communication port	RS-232/RS-485/TTL/Peclo-D
	Analog video output	PAL(CVBS)
	Keys	5 buttons
