HIPTZ-1 EO/IR Marine Camera System

We focus on the innovation and research and development of small and compact infrared thermal imaging cores and have the industrial mass production technology, domestic hardware & software technical engineers who are proficient in optical design, image algorithm, information processing, precision machinery and thermal imaging core technology.

Product Introduction This EO/IR Marine Camera System is designed for marine security and high-altitude observation. It is equipped with advanced attitude sensor and can automatically adjust the camera position for adapting to the bad weather at sea. Product Features > Thermal camera & high-definition visible camera > All-metal structure > IP66 protection level > Worm gear and worm drive, power-off and self-locking function > Support network HD transmission

Classification:

Finished thermal imagers

Key words:

HIPTZ-1 EO/IR Marine Camera System

Message Return

Product Details

HIPTZ-1 EO/IR Marine Camera System
thermal camera	Detector	Uncooled FPA
	Resolution	640x480 17um/ 640x512 12um/ 384x288 17um
	Lens	Standard : 75mm(other lenses can be optional）
	Frame rate	25 hz/s
CCD camera	Sensor	1/1.8″Progressive Scan CMOS
	Resolution	1920×1080P 25Hz 2M Pixels
	Min. Illumination	Color:0.0005 Lux @(F1.4,AGC ON); B/W:0.0001Lux @(F1.4,AGC ON)
	Automatic control	automatic white balance, automatic gain, automatic exposure
	Signal-to-noise ratio	≥55dB
	Wide dynamic	120dB
	Glare suppression/backlight compensation	on/off
	Noise reduction	3D Noise reduction
	Shutter	1/25～1/100000s
	Day/night mode	Filter switching
	Focus mode	Auto / manual
	Lens	6.1mm～317mm 52X / 4.7-141mm 30X
	HFOV	61.8°～1.6° / 66.1°-2.0°
Gimbal function	Horizontal range	360° continuous rotation
	Horizontal speed	0.05°～400°/s
	Vertical range	:-90°～+90°rotation
	Vertical speed	0.05°～200°/s
	Proportional zoom	support
	Number of Presets	255
	Cruise scan	6 patrols
	Wiper	optional
Gyro stabilization	Stabilization	2 Axis
	Static Accuracy	0.1°
	Maximum carrier following speed	100°/s
Network function	Video compression	H264 / H265
	Power-off memory	support
	Network interface	RJ45 10Base-T/100Base-TX
	Maxim image size	1920X1080
	Frame rate	25Hz/s
	Compatibility	ONVIF、GB/T 28181
	Network protocol	IPv4, HTTP, FTP, RTSP,DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP
	Third-rate code	support
	safty	Password protection, multi-user access control
General parameters	Audio input/output	support
	Alarm input/output	1
	Communication port	RS422
	Laser ranging	Can be customized
	Power supply	DC24V 5A±15%，50Hz
	Power consumption	Maxim 60W
	Protection level	IP67
	Electromagnetic compatibility	6KV GB/T 17626.5 -4
	Operating temperature	：-40℃～70 ℃
	Operating humidity	＜90%

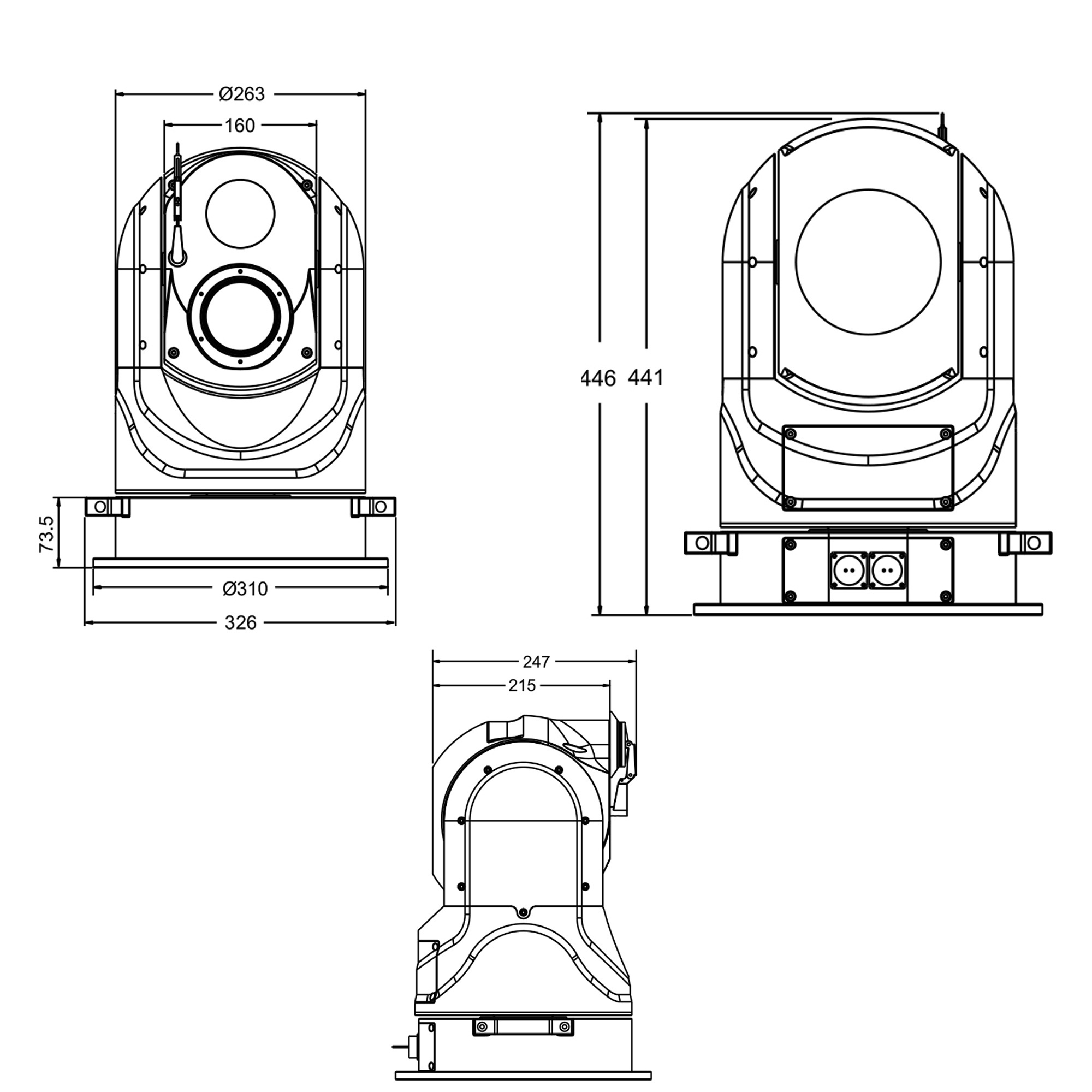

	Size	446mm×326mm×247mm
	Weight	15KG
