HIW-1 Infrared thermal imaging monocular with flashlight

We focus on the innovation and research and development of small and compact infrared thermal imaging cores and have the industrial mass production technology, domestic hardware & software technical engineers who are proficient in optical design, image algorithm, information processing, precision machinery and thermal imaging core technology.

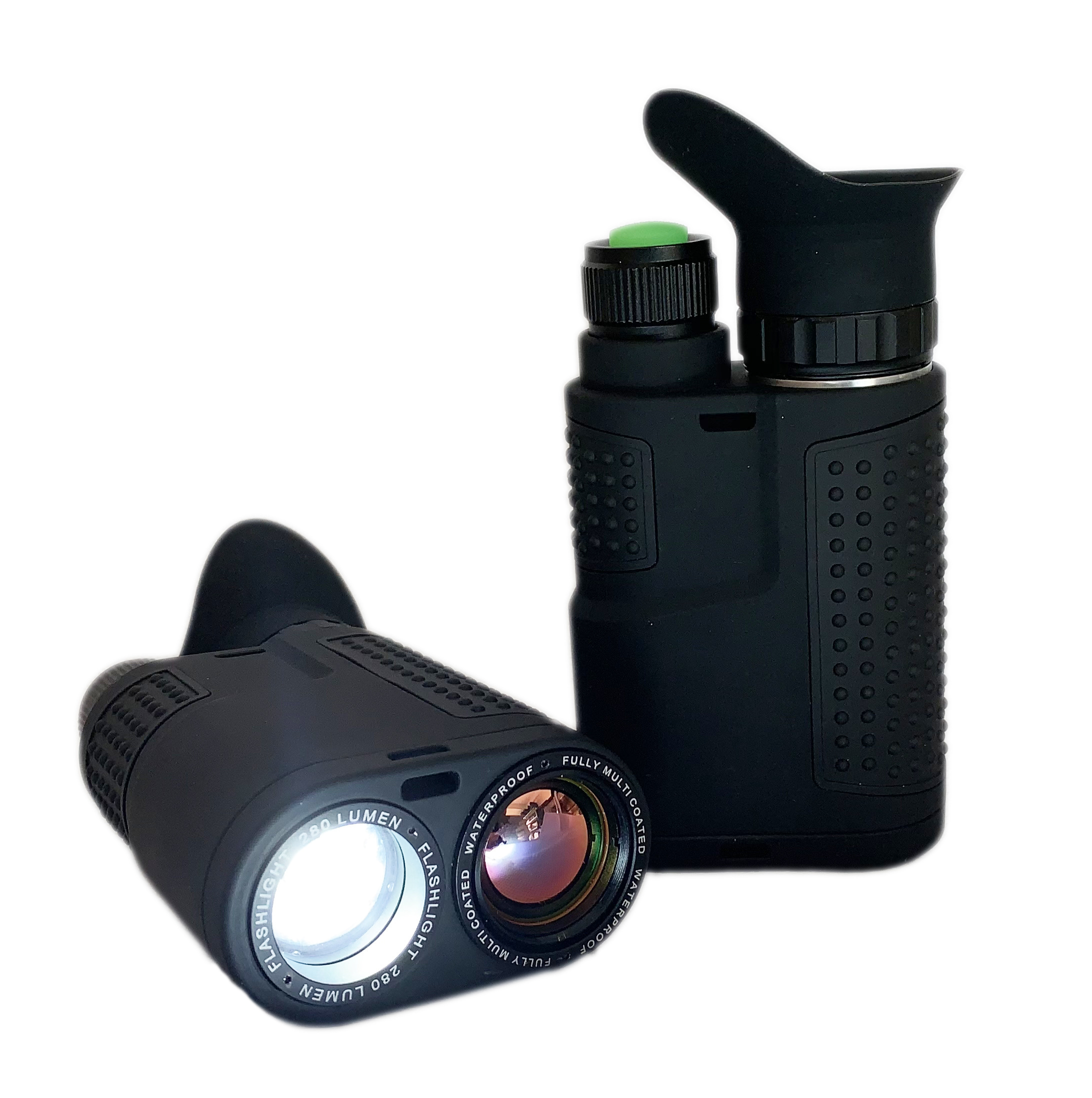

Product Introduction This is a mini portable infrared thermal imaging monocular with flashlight. It is equipped with advanced uncooled thermal sensors. It uses shutterless algorithm, provides no-blind real-time imaging in day and night and continously works up to 10 hours, is the first choice for outdoor activities at night. Product Features > Small & portable, its weight is only 293g > Clear imagings, OLED 800x600 pixels > Waterproof & dustproof > Multiple lighting modes > WIFI is customized > Optional AI voice control > Optional Video recording function

Classification:

Finished thermal imagers

Key words:

HIW-1 Infrared thermal imaging monocular with flashlight

Message Return

Product Details

HIW-1 Infrared thermal imaging monocular with flashlight
Thermal imaging camera
Sensor	384×288 17um / 640x480 12um
NETD	≤30mk at f/1.0 300K
Frame rate	50Hz
Spectral range	8~14um
Lens	25mm f1.0
Polarity	White hot, black hot, color
Zoom	1-4x(step:0.05) / 1-8x(shep:0.1)
Eyepiece	21mm 12x
Diopter	ajustable
OLED	0.39 inch 800x600 pixels, display effect 80 inches
Flashlight
Light	3W LED lamp beads
luminance	280 lumen
Lighting mode	Strong/weak/burst
Lighting color	white
Strong light distance	200 meters
Other parameters
Waterproof	Yes
WIFI	customized
Battery	18650 lithium battery
Working time	10 hours(no turn on the flashlight)
Weight	293g
Size	125x77mm
